Commercial Essential Oil Aroma Scent Machine Wall - Mounted 6W DC 12V

DC12V Commercial Essential Oil Diffuser / Wall - Mounted Aroma Scent Machine 6W Power

Scent diffuser S401 is the best choice in the commercial area of the small area of space environment flavored, with very stable performance, easy operation and maintenance, spread scent quickly and effectively covering 100 SQM space evenly, keeping fragrance more fresh and lasting. Build in double powerful pump and 200 ml plastic refill bottle, which make device work more efficiently that easy installation & energy saving. It’s made of high-quality metal, and design to wall-mounted style that easy for installation.

Specification:

Setting

Operating Instructions

• Connect the USB cable with power adapter[5V-0.5A]
• Insert the other end of USB cable into the power interface (DC POWER IN) on device.
• Connect the adapter with power socket and energize the device

Connect Instructions

• Connect to the power supply, [1h] is lighted in red and it shows the device in standby status. Press[TIMER], [1h] is lighted in blue. It shows the device will be turned off automatically after working for 1 hour, then light [30s]in blue indicating the working time will works 60 seconds then pause for 30 seconds. Meanwhile, the first model of [INTENSITY] will be lighted in blue, it indicates the current aroma concentration is the smallest mode.
• Press [TIMER] to set the working time for 1, 2, 4, 8 hour(s), the corresponding indicator light will be lighted and continue to turn it off when the light is red.
• Press [INTENSITY] to set the mode as below, the corresponding indicator light will be lighted.

Work for 60 seconds/Pause for 30 seconds;

Work for 60 seconds/Pause for 60 seconds;

Work for 60 seconds/Pause for 120 seconds;

Work for 60 seconds/Pause for 300 seconds;

• Press [INTENSITY] to set aroma concentration as 1^st, 2^nd, 3^rd, 4^th mode, the corresponding indicator light will be lighted(1st model is the smallest, 4^th mode is the largest).

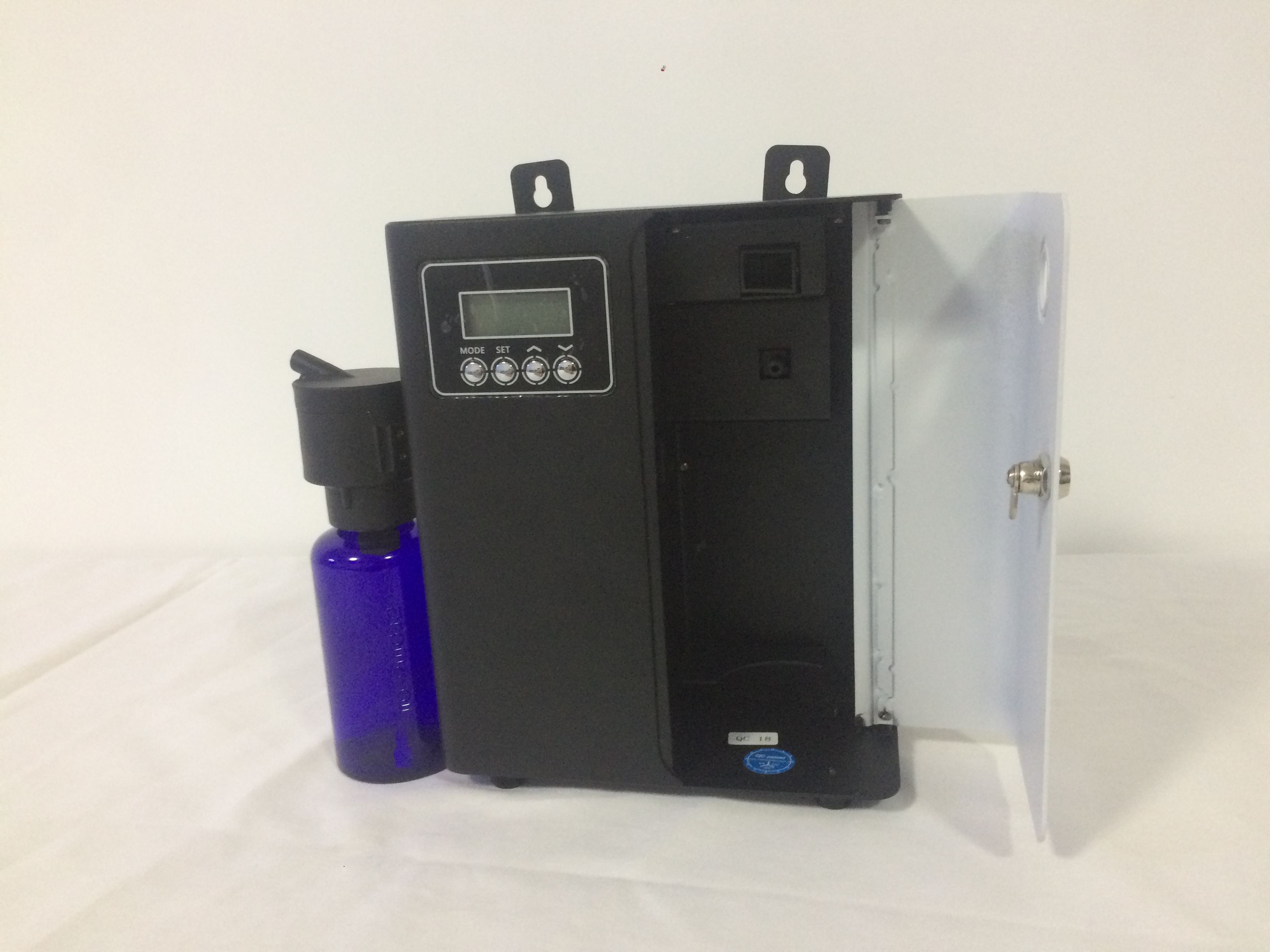

Installation

1. Insert the key into clasp and press it hard, then turn over the cover 90° up;
2. Take out oil canister and atomizer, then fill canister with fragrance oil;
3. Assemble oil canister and atomizer, then embed it into nozzler;
4. Close the cover and connect adapter with power socket to work as different settings;

Maintenance

In order to ensure the best diffusing effect, pls check and maintain the device regularly as the following steps.

• Unlock the door and take out oil canister which is spent.
• Fill some alcohol into the canister and clean it.
• Install the canister on device filling with alcohol and make the device stay in working status for 5-10 minutes.
• Turn off power when finishing cleaning.
• Take out the canister and fill fragrance oil into it again and install on the device, then close the cover to finish the maintenance process.

Application

hotel room, offices, conference rooms, corridors, KTV, bars, toilet, etc

essential oil air diffuser

aroma essential oil diffuser

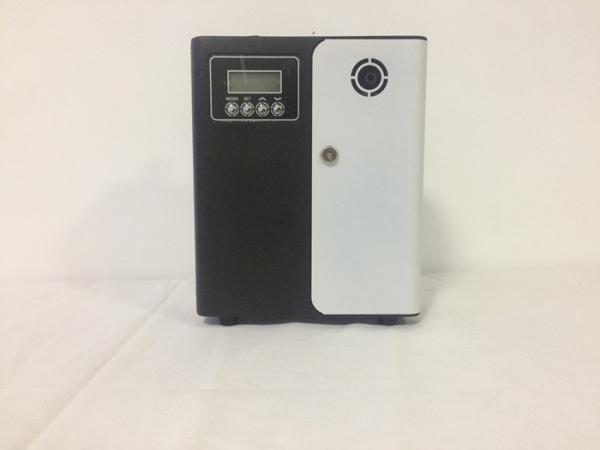

Commercial Essential Oil Aroma Scent Machine Wall - Mounted 6W DC 12V Images
